Our Machinery

Our Equipment

At Teckna Group, we pride ourselves on operating drilling rigs equipped with some of the newest and most advanced technology in the industry.

In addition to our cutting-edge drilling rigs, we have made significant investments in state-of-the-art mud treatment equipment. This equipment is instrumental in maintaining site cleanliness and creating better working environments for our drill crews. By prioritizing safety and efficiency, we enhance overall productivity and ensure a safe work area for everyone involved.

At Teckna Group, our commitment to innovation and investment in modern equipment underscores our dedication to delivering exceptional service and exceeding client expectations.

services
Comacchio MC450P

Comacchio MC450P

View specification, application, features and dimensions below.

Rotary drive 1500Nm
Rotation speed 110 rpm
Maximum pullback force 10 ton
Maximum winch pullback 2 ton
Maximum drilling diameter 300mm
  • Landfill site investigation
  • Geothermal open & closed loop
  • Water boreholes
  • Environmental boreholes
  • Single rotary head
  • Onboard triplex misting pump
  • Onboard flushing pump
  • Onboard automatic hammer oiler
Length with mast down 8.00m
Length with mast vertical 6.00m
Width overall 1.70m
Weight 8.00 ton
Specifications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Applications
  • Landfill site investigation
  • Geothermal open & closed loop
  • Water boreholes
  • Environmental boreholes
Features
  • Single rotary head
  • Onboard triplex misting pump
  • Onboard flushing pump
  • Onboard automatic hammer oiler
Dimensions
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Read more

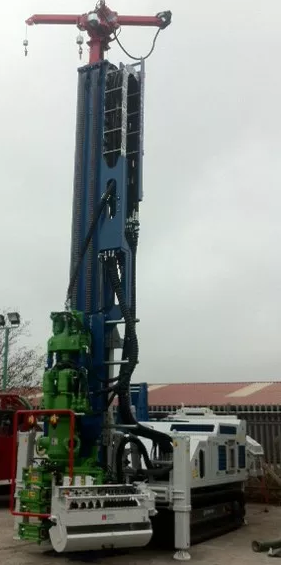

Comacchio MC900P.1

Comacchio MC900P.1

View specification, application, features and dimensions below.

Rotary drive 1 to rods 1500Nm
Rotation speed 200 rpm
Rotary drive 2 to casings 4500Nm
Rotation speed 80 rpm
Maximum pullback force 20 ton
Maximum winch pullback 2 ton
Maximum drilling diameter 360mm
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Length with mast down 9.00m
Length with mast vertical 6.00m
Width overall 2.40m
Weight 18 ton
Specifications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Applications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Features
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Dimensions
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Read more
Comacchio MC900GT

Comacchio MC900GT

View specification, application, features and dimensions below.

Rotary drive 1 to rods 1500Nm
Rotation speed 100 rpm
Rotary drive 2 to casings 4500Nm
Rotation speed 40 rpm
Maximum pullback force 20 ton
Maximum winch pullback 2 ton
Maximum drilling diameter 240mm
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Length with mast down 9.00m
Length with mast vertical 6.00m
Width overall 2.40m
Weight 18 ton
Specifications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Applications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Features
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Dimensions
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Read more

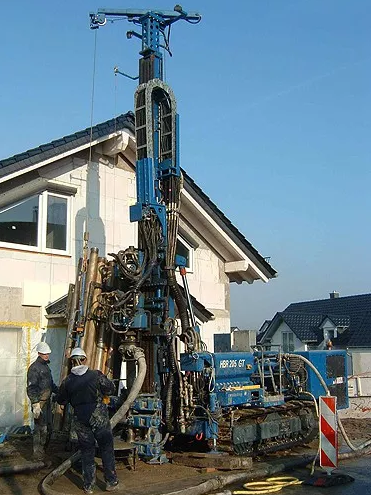

Hutte 205GT

Hutte 205GT

View specification, application, features and dimensions below.

Rotary drive 1 to rods 1500Nm
Rotation speed 102 rpm
Rotary drive 2 to casings 3000Nm
Rotation speed 54 rpm
Maximum pullback force 20 ton
Maximum winch pullback 2 ton
Maximum drilling diameter 254mm
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Length with mast down 8.00m
Length with mast vertical 6.00m
Width overall 2.50m
Weight 18 ton
Specifications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Applications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Features
  • Dual rotary heads
  • On board 300L/m triplex flush pump
  • On board automatic hammer oiler
  • Rod and casing rack
  • Rod and casing handling system
  • Remote infra-red control
Dimensions
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Read more
Mud Treatment Unit 1

Mud Treatment Unit 1

View specification, application, features and dimensions below.

  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes

Mud Reservoir ‘Patented’

  • 1000 Gallons
  • 3/16″ HR Steel
  • 2 – 4″ Suction Outlet
  • Sloped walls & Sand traps

Deutz Diesel 74 HP BF4L2011

  • Air-cooled
  • 4 cylinder in-line engine
  • Fulfills Tier III EPA emissions regulations
  • Electronic Engine Monitor System
  • (Safety shutdown) Gauge panel
  • Alternator 12 Volt

Shaker

  • 4′ x 5′ Double Screen – Bottom 10 & 100 Top Mesh
  • Hydraulic driven w/constant speed control
  • Screens mesh should be adjusted as needed
  • Rotary Motion 1/4″ HR Steel wall construction

Mud Mix Hopper

  • Vacuum Jet ventury

Total Weight

  • 7,000 Pounds
  • Foot Print 6’6″ Wide x 14′ Long x 7’6″ Tall

Fuel Capacity

  • 25 Gallons Diesel approximately 20 hours
  • Run time may vary

Desander System

  • 2″ x 3″ x 8.5″ 118 (Centrifugal) Mud Pump
  • Manifold Pressure Gauge
  • 3 – 5″ Desander Cones 255 GPM
  • 15 Micron Mimimum Cut

San Guzzler pickup pump (Patented)

  • 12″ (Centrifugal) Mud Pump
  • Can take rocks up to 1-1/2″ diameter
  • Adjustable 0 – 3000 RPM
  • 0 – 500 GPM
  • 20′ of 4″ Hose

Hydraulics System

  • Closed Center
  • Variable Displacement pump
  • Load sense Control
  • 55 Gallon Oil Reservoir
  • High Capacity Oil Cooling System
Applications
  • Geothermal closed loop
  • Geothermal open loop
  • Water boreholes
  • Environmental boreholes
Features & Specifications

Mud Reservoir ‘Patented’

  • 1000 Gallons
  • 3/16″ HR Steel
  • 2 – 4″ Suction Outlet
  • Sloped walls & Sand traps

Deutz Diesel 74 HP BF4L2011

  • Air-cooled
  • 4 cylinder in-line engine
  • Fulfills Tier III EPA emissions regulations
  • Electronic Engine Monitor System
  • (Safety shutdown) Gauge panel
  • Alternator 12 Volt

Shaker

  • 4′ x 5′ Double Screen – Bottom 10 & 100 Top Mesh
  • Hydraulic driven w/constant speed control
  • Screens mesh should be adjusted as needed
  • Rotary Motion 1/4″ HR Steel wall construction

Mud Mix Hopper

  • Vacuum Jet ventury

Total Weight

  • 7,000 Pounds
  • Foot Print 6’6″ Wide x 14′ Long x 7’6″ Tall

Fuel Capacity

  • 25 Gallons Diesel approximately 20 hours
  • Run time may vary

Desander System

  • 2″ x 3″ x 8.5″ 118 (Centrifugal) Mud Pump
  • Manifold Pressure Gauge
  • 3 – 5″ Desander Cones 255 GPM
  • 15 Micron Mimimum Cut

San Guzzler pickup pump (Patented)

  • 12″ (Centrifugal) Mud Pump
  • Can take rocks up to 1-1/2″ diameter
  • Adjustable 0 – 3000 RPM
  • 0 – 500 GPM
  • 20′ of 4″ Hose

Hydraulics System

  • Closed Center
  • Variable Displacement pump
  • Load sense Control
  • 55 Gallon Oil Reservoir
  • High Capacity Oil Cooling System
Read more
